Vertical garden installed above the floor level – drainage

Vertical garden above floor level

The vertical garden, installed in this manner, has a structure mounted above the floor level. In this case, the drainage outlet must be installed at the lowest point of the green wall. At this height, there is a water collection gutter that is drained through the sewage outlet. Therefore, if the installation of the living wall is planned 200 centimeters above the floor, the drainage connection must also be positioned 200 centimeters above the floor.

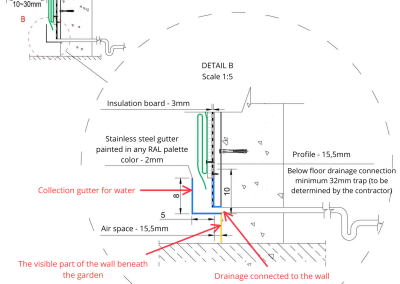

Construction schematics

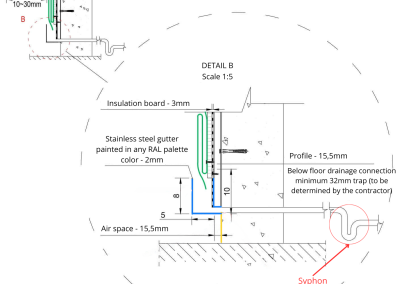

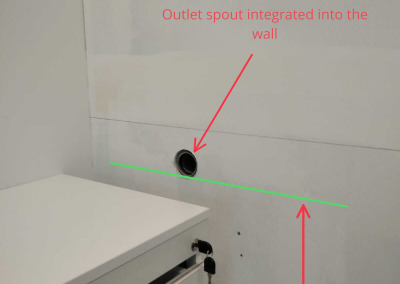

Images depicting a vertical garden installed above the floor level. The drainage outlet, integrated with the wall, is concealed by a water collection gutter, making it invisible in this case. Drainage systems are typically constructed using pipes with a diameter of 32mm or 50mm. For green walls, it is recommended to use a drainage pipe with a diameter of 50mm. It is important to remember to incorporate a siphon in the drainage system.

Placement of the garden with connections

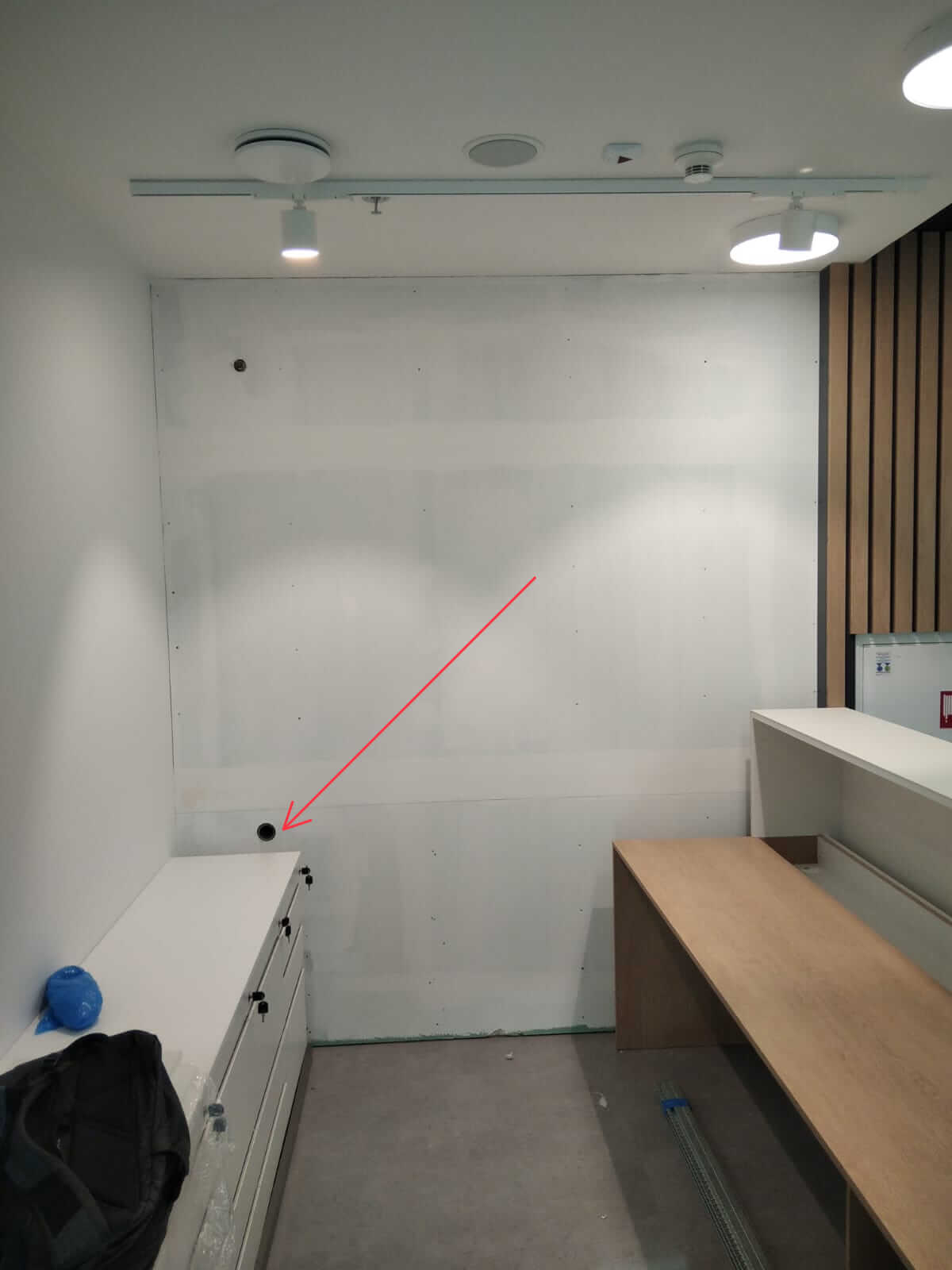

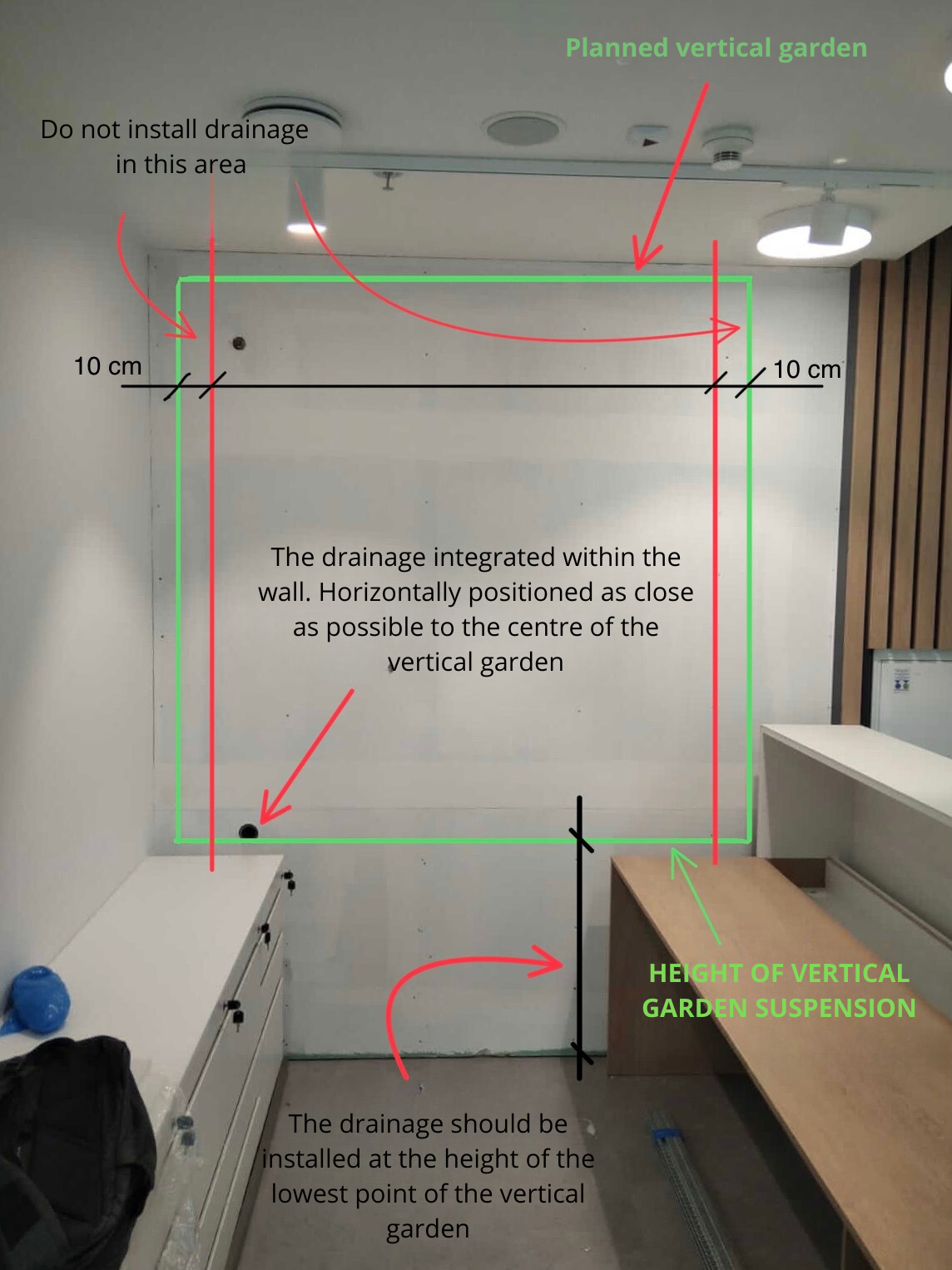

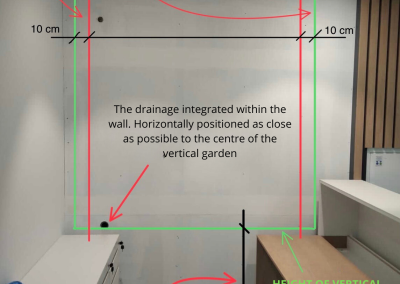

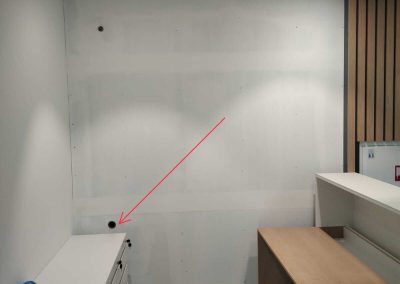

It is important for the drainage connection to be located as close to the center of the vertical garden as possible. If such a construction is not feasible, the drainage can be shifted to the left or right within the garden. However, it should not come closer than 10 centimeters from the edge of the garden, nor extend beyond its outline.

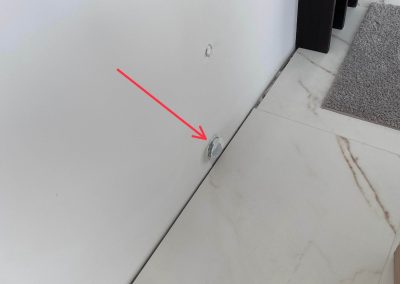

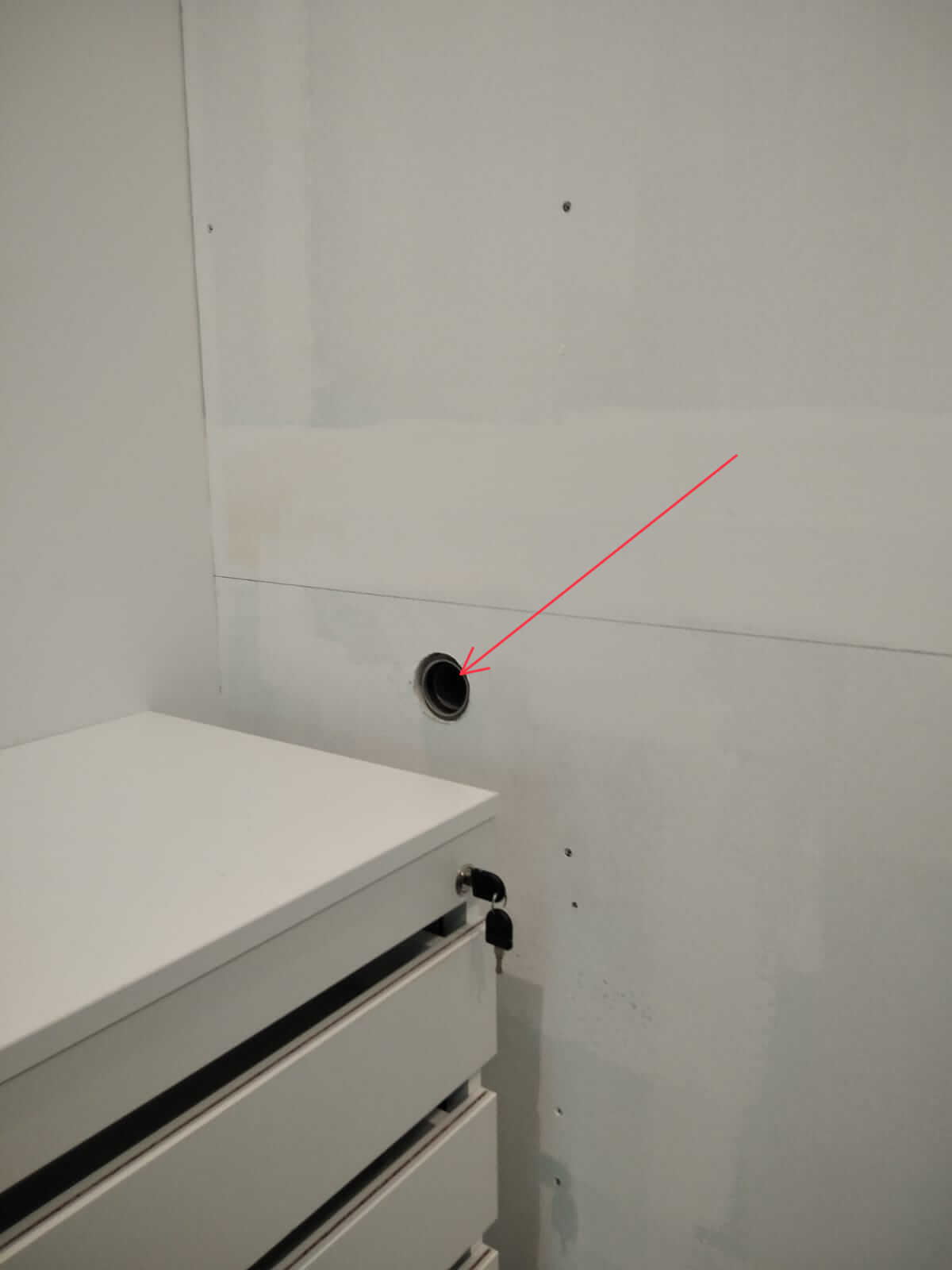

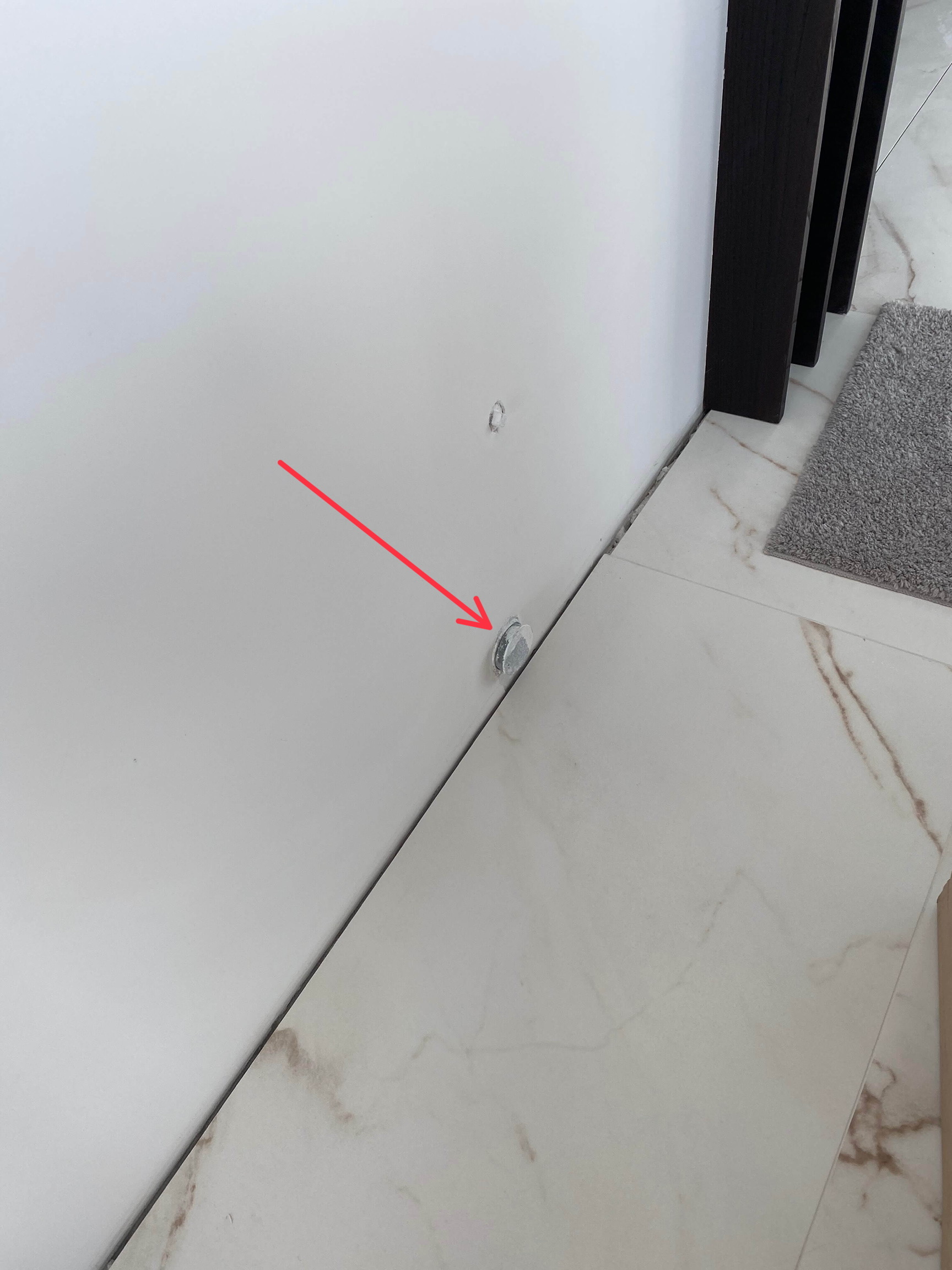

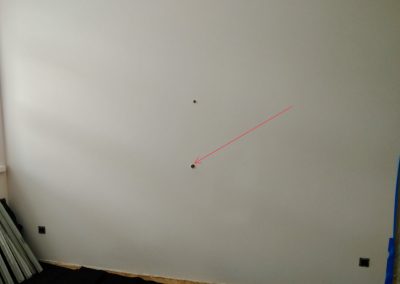

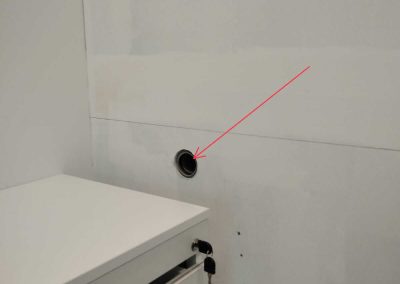

An essential consideration is to ensure that the drainage pipe’s opening is flushed with the wall.
